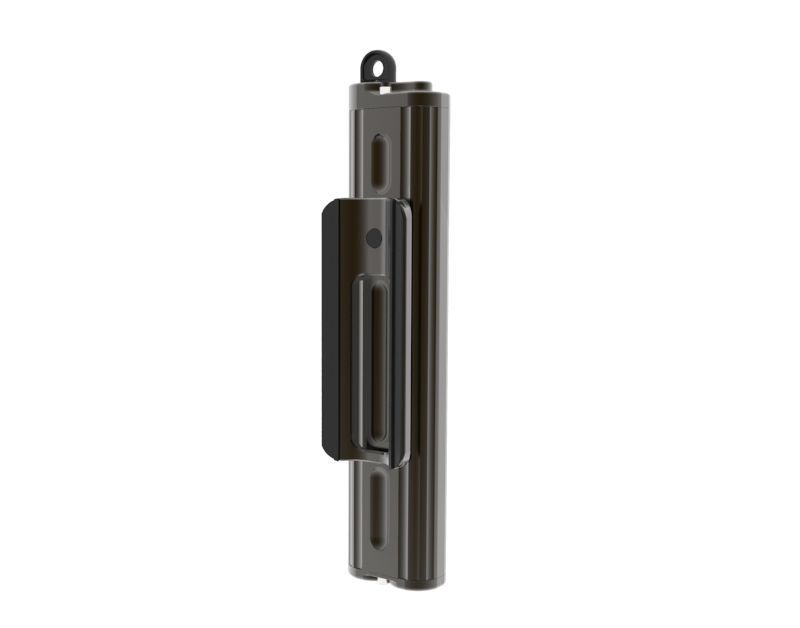

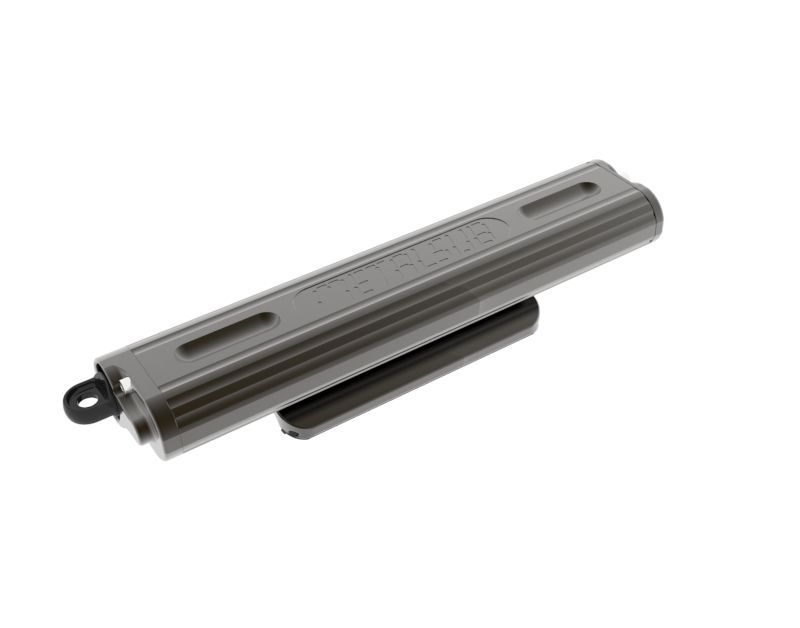

Battery tank FX1211

Article number 12091
Find a selling point

Product Information

View product information of Battery tank FX1211



The FX1210 with a fixed mounting plate is the middle member of the Metalsub battery tank series. With12 Volt and 11 Ah power it provides a very long burning time (at full power) of more than 4,5 hours when using a 24 Watt lamp head and up to 2 hours when using the most powerful Metalsub cable lamp of 60 Watt. This battery tank is a nice compromise between compactness and large capacity.


Despite the compact dimensions of this battery tank, it’s a full member of the Metalsub family:

  • Manufactured from a very high quality aluminum.
  • Equipped with Metalsub's unique anodising layer, according to US Military Standards (MIL-A-8625-E type3 class2). This protective layer is also impregnated with Teflon, which guarantees a high degree of corrosion resistance.
  • Equipped with an overpressure valve, so that any gases which arise during charging can safely leave the battery.
  • Designed according to the "less is more" principle: no unnecessary buttons, lids or openings.
  • The battery tank has only one connection that is used both to connect the (exchangeable) lamp head and to charge the lamp.
  • The streamlined, rounded, minimalist design without sharp edges also ensures that underwater lines and nets do not easily catch on this tank.
  • Equipped with Metalsub's very robust cable light coupling: connect or remove in seconds with just a quarter turn.

Technical specifications

Aluminium, hard-anodized and impregnated with Teflon*
Weight above water
2.8 kg
Weight under water
1.6 kg
Maximum dive depth
250 meters
Maximum pressure test
25 bar
Overpressure valve for any battery gas leakage
Battery type
Battery power
12V - 10Ah
Charging time battery cells
5 hours
Battery charger
Capacity with 2400 Lumen LED head
ca. 290 min**
Capacity with 5100 Lumen LED head
ca. 130 min**
Capacity with 6350 Lumen LED head
ca. 115 min*
Anodised in accordance with American Military Standard MIL-A-8625-E type 3 class 2 and impregnated with Teflon, which guarantees a high degree of corrosion resistance.
Measured at a full power dimming position and at a water temperature of 20ÂșC.
